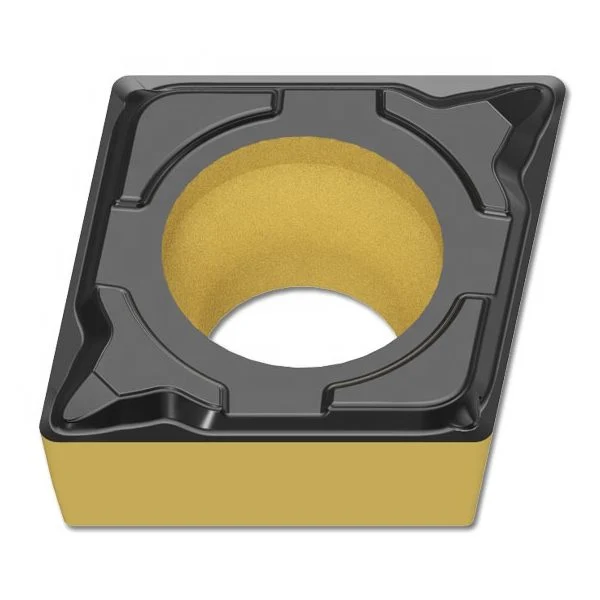

CCMT09T308-MD PP6115 Inserts (sold as set of 10)
Positive insert with 80° rhombus shape.
Best recommended for mild steel, but will also do for stainless and cast iron.
BP6225 Grade – The improved substrate functions with high stability and excellent resistance to breakage; the materials has improved the tool life and better resistance to plastic deformation by applying composite coating technique with upgraded CVD coating (MTCVD) and thick film-a-AL203.
BP6225 is suitable for continuous cutting at high speed and for interrupted cutting. Can endure high temperatures. Wet and dry processing.
R551.75 Incl. VAT
Out of stock
More Info
Chip breaker P3:
• Best suited for semi-finish machining of carbon steel and alloy steel.
• Suitable for processing workpiece with various dimensions and types.
• Maintaining tool life and excellent surface when machining at high speed and high feed.
Cutting speed vc(m/min): 120-300
Feed per revolution fn(mm/rev): 0.1-0.3
Cutting depth ap(mm): 0.5-2.5
Radius (R): 0.8mm
Please note: the product photo is for illustration purposes and may not reflect the actual nose radius or chipbreaker selected.
